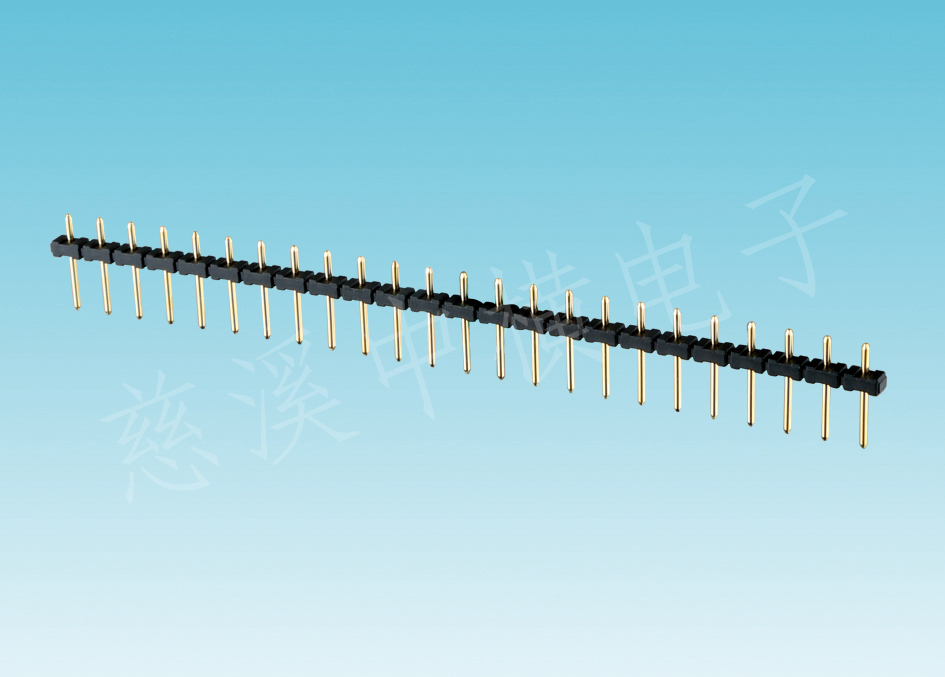

ZH331J-500常規(guī)
| ZH331J-500 Pitch：500MM | ||
| Part | Material | Plated |
| Frame： | PA66 UL94V-0 | － |
| Wireprotector： | Brass | Tin |
| Electrical | ||
| Voltage： | 300V | |
| Current： | 10A | |
| Poles： | 2-24P | |
| Insulation Reslistance： | 5000MΩ/1000V | |
| Withstand Voltage： | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation： | -33℃~+120℃ | |
| Max Soldering： | +250℃,5Sec | |
